Heat your pool with a solar panel.
SPECIFICATIONS
DIY Supplies: ELECTRICAL
Model Number: Curve 3900
Brand Name: LanYuXuan
Place of Origin: Jiangsu, China
Brand Name: STARMATRIX
Pipe Material: HDPE
Warranty: 2years
Product Name: Curve 3900
Feature: with 20% efficiency improvement
Size: 110CM*69CM
Capacity: 15L
Connection: 38 mm
In Stock: YES
G.W.: 8.4 kgs /18.54 lbs
40'HQ: 632PCS
OEM & ODM: YES
New designed solar heater with 20% efficiency improvement
High quality HDPE collector with polycarbonate cover completely cover the heater to lock in heat
15L water capacity

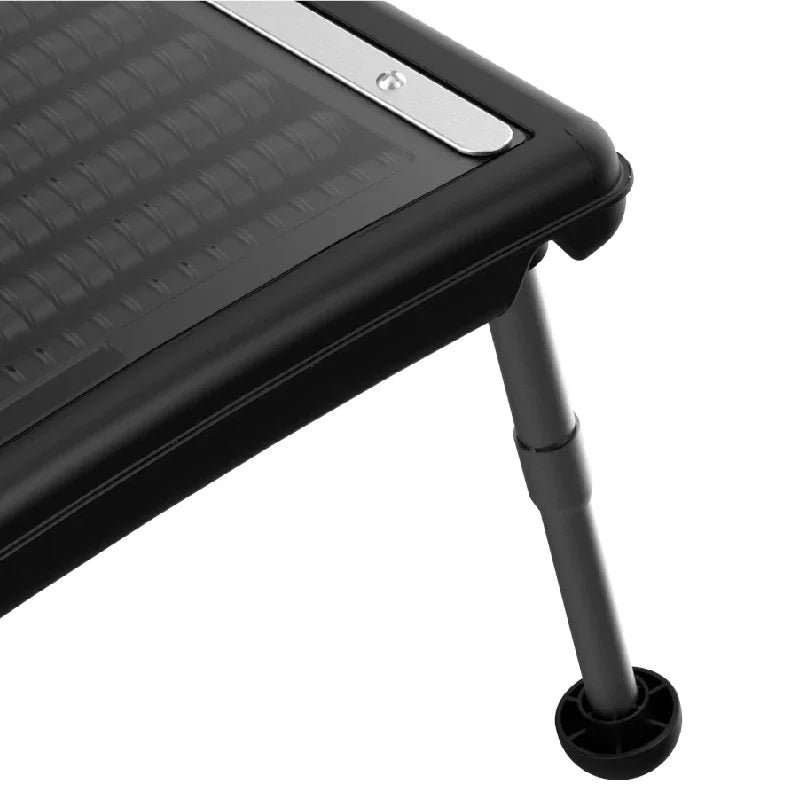

Adjustable legs to set the heater

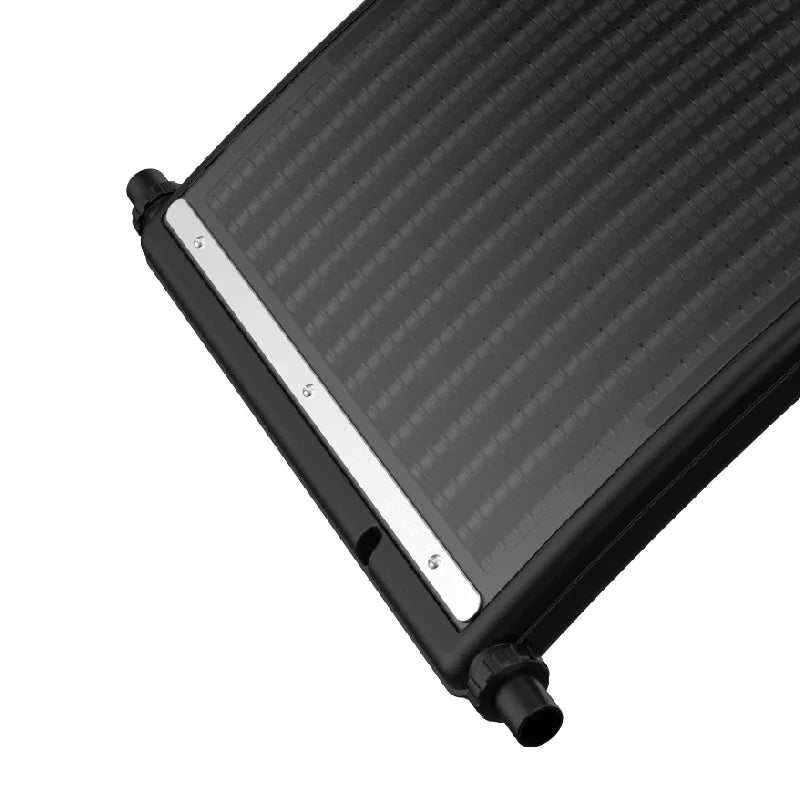

38 mm connection
New creative hard connection for easy connect more heaters in series
Flow capacity up to 10000 l/h with no bypass needed
|
Model No.
|
|
|
CURVE 3900
|
|
|||
|
Product Capacity
|
|
|
15 l/3.96 gal
|
|
|||
|
Box Dims
|
|
|
1130*710*140mm/44.48"*27.95*5.51"
|
|
|||
|
G.W.
|
|
|
8.4 kgs/ 18.54 lbs
|
|
|||
|
Recommendation
|
|
|
use one for a pool of 9000 l/2400 gal
|
|
|||
|
40'HQ
|
|
|
632 PCS
|
|
|||
|
Heat Efficiency
|
|
|
1 m3 water ＞ 1 day ＞ max. 11.1℃
14 m3 water ＞ 1 day ＞ max. 0.8℃
14 m3 water ＞ 5 days ＞ max.4.0℃
|
|
|||
